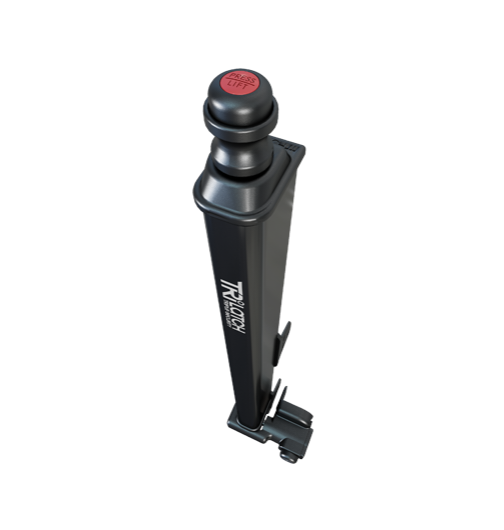

tri mag 50 magnetic pool safety latch front view
tri mag 50 magnetic pool safety latch front view

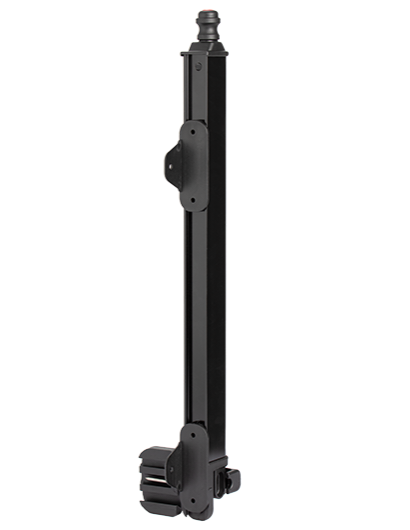

tri mag 50 magnetic pool safety latch back view
tri mag 50 pool safety latch sans compliant child safe gate lock

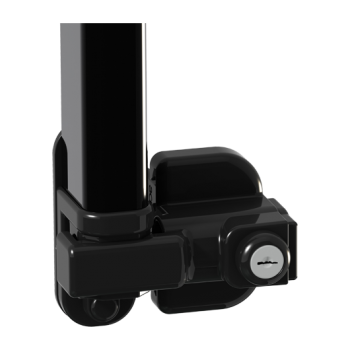

tri mag 50 magnetic pool safety latch lock cylinder close up

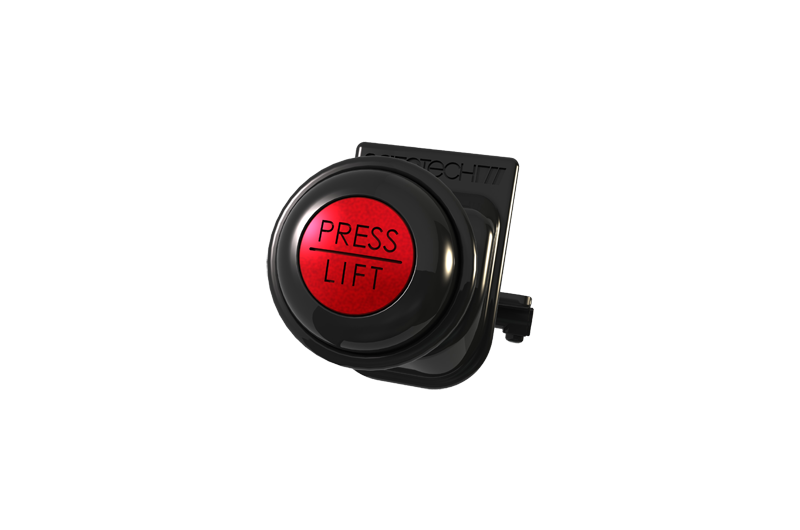

tri mag 50 magnetic pool safety latch push lift button

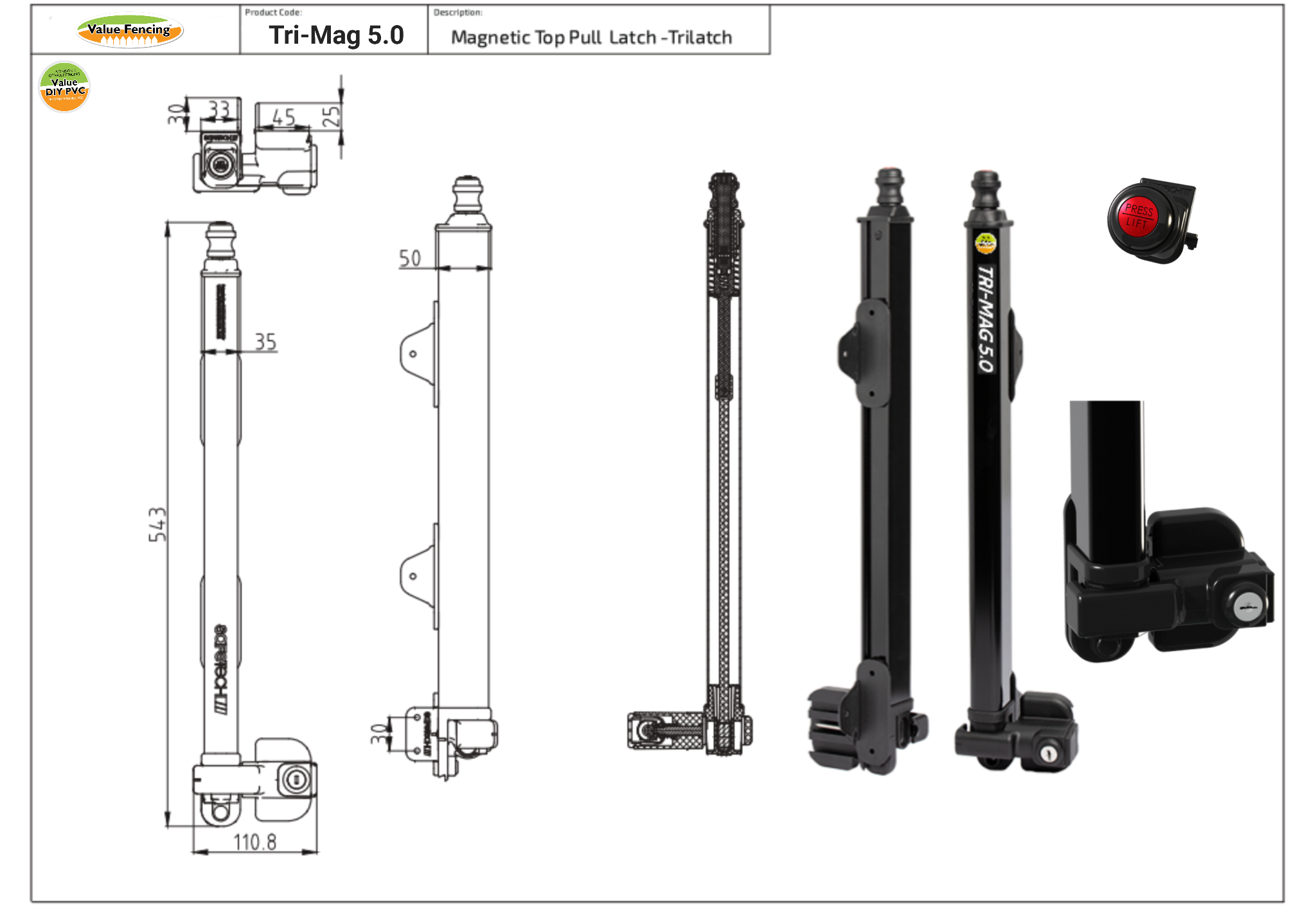

tri mag 50 pool safety latch technical drawing specifications

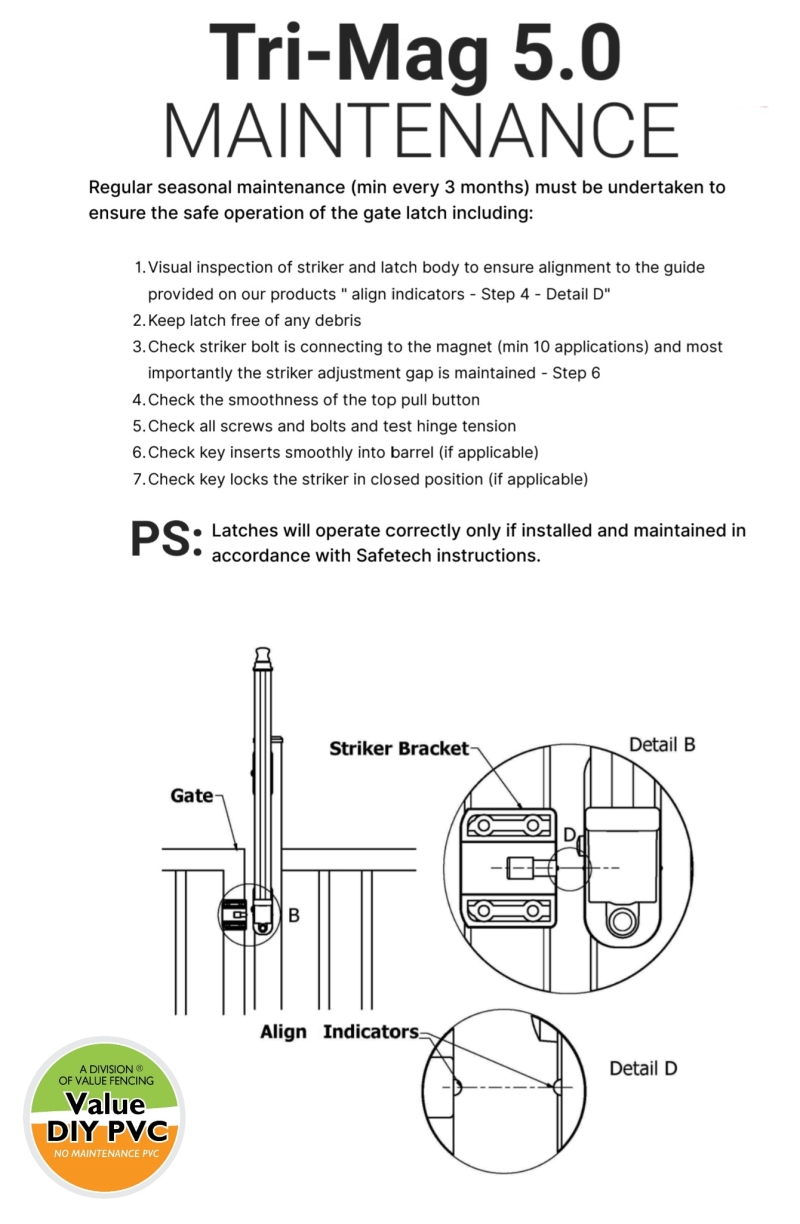

tri mag 50 pool safety latch maintenance information sheet

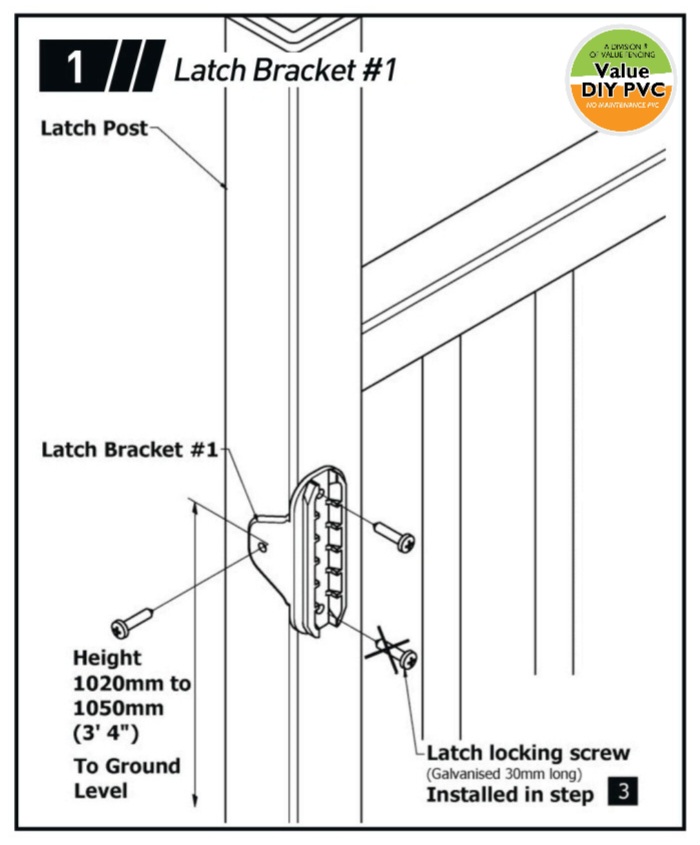

tri mag 50 installation manual page 1 latch bracket part 1

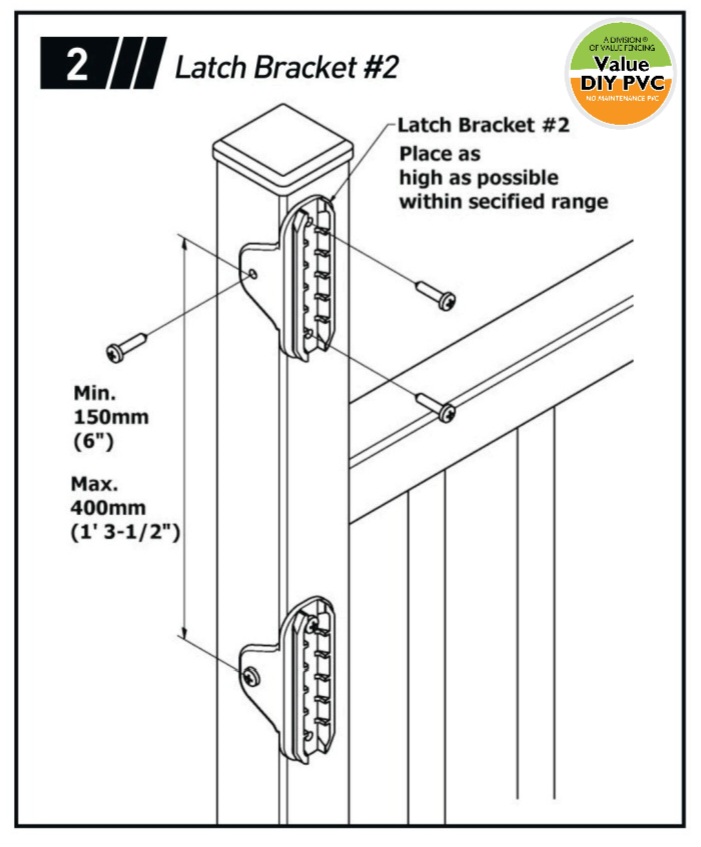

tri mag 50 installation manual page 2 latch bracket part 2

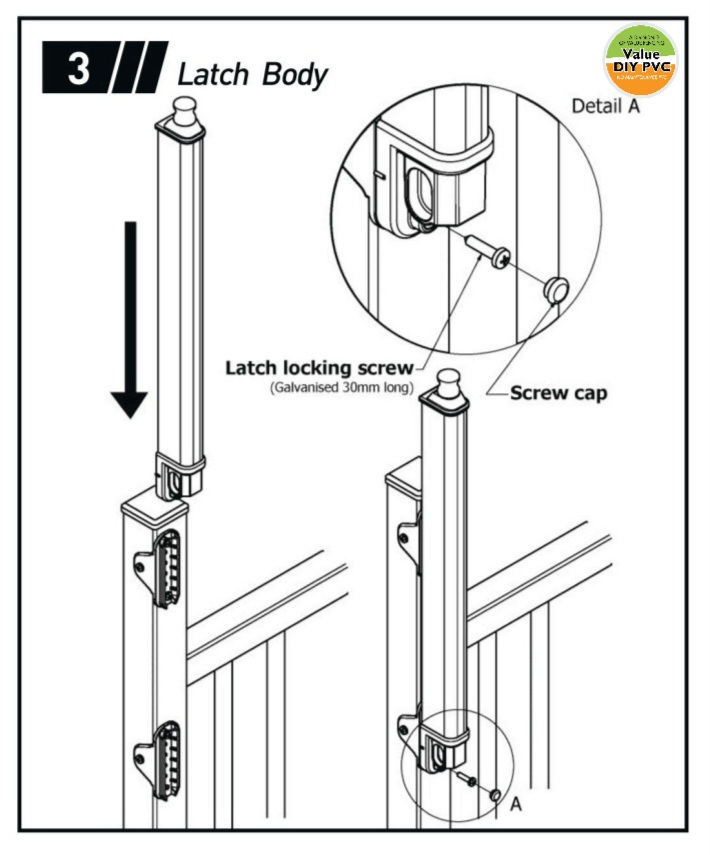

tri mag 50 installation manual page 3 latch body

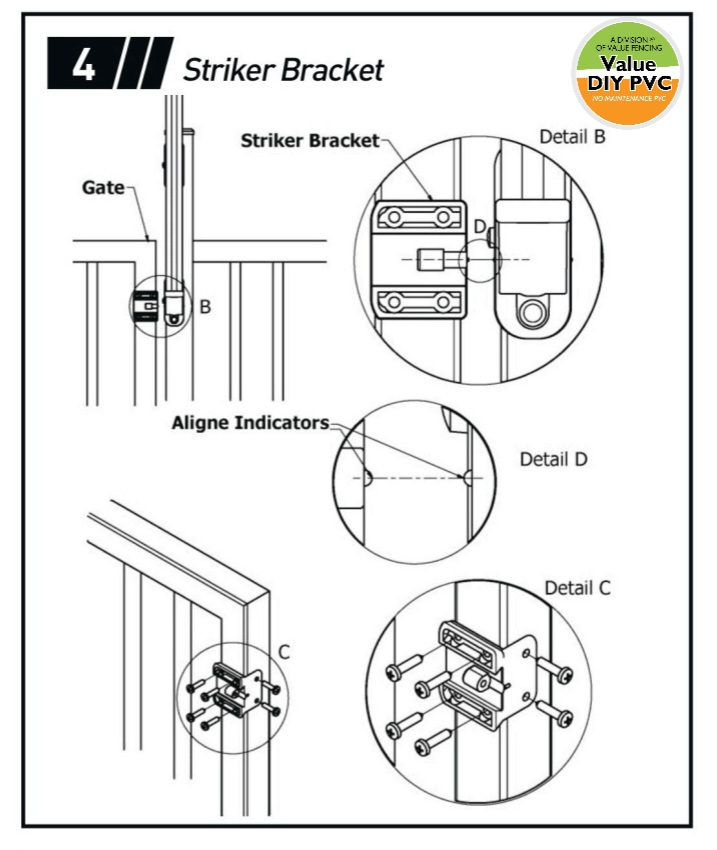

tri mag 50 installation manual page 4 striker bracket

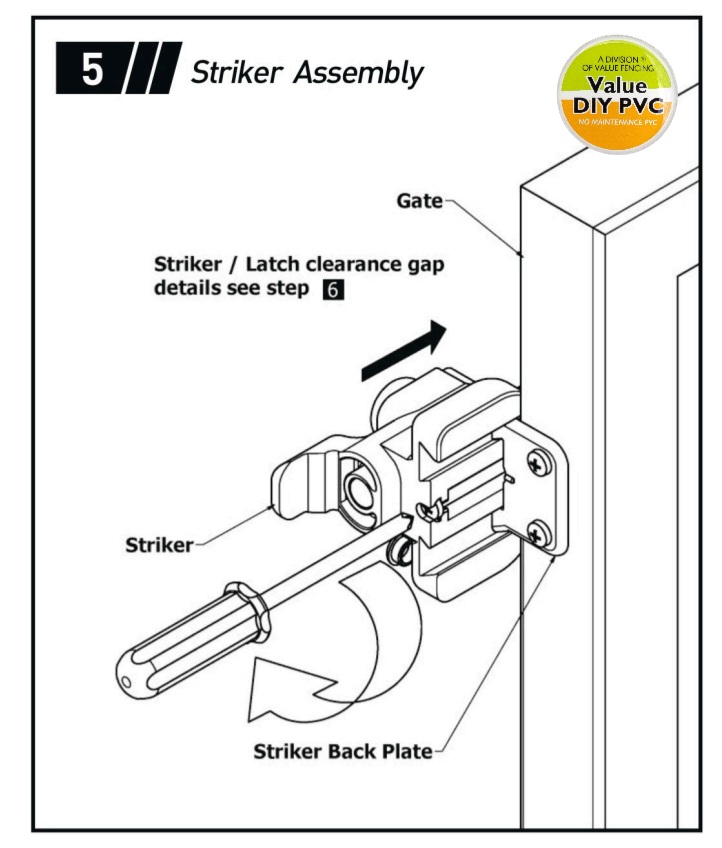

tri mag 50 installation manual page 5 striker assembly

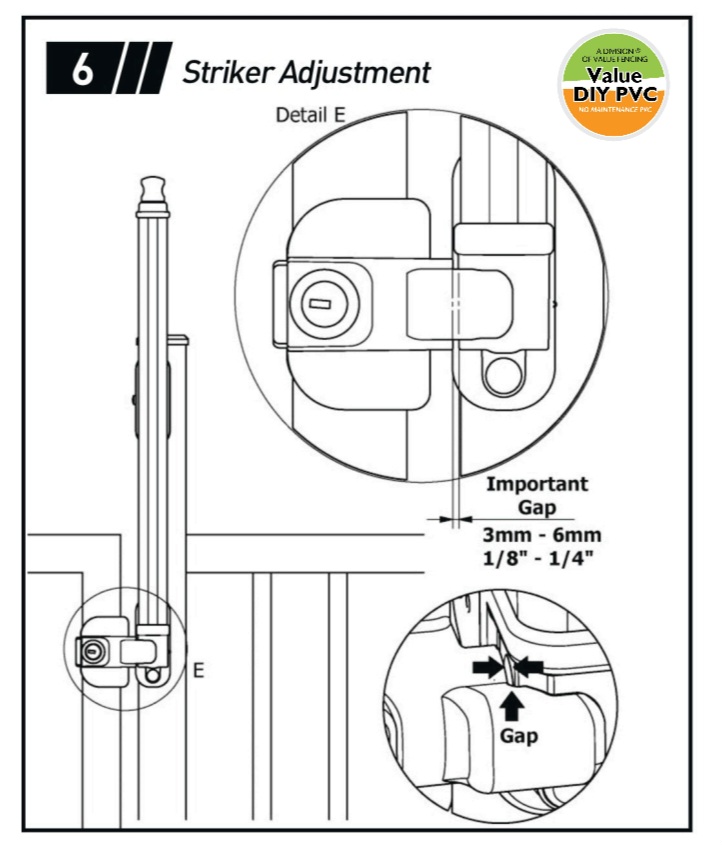

tri mag 50 installation manual page 6 striker adjustment

Tri-Mag 5.0 Pool Safety Gate Lock

Product Code: Tri-Mag 5.0

Description

🛡️ Tri-Mag 5.0 Pool Safety Gate Latch

The Ultimate Magnetic Pool Safety Latch - Engineered for Child Safety & Full Legal Compliance

✅ Product Overview

The Tri-Mag 5.0 Pool Safety Latch is the next-generation magnetic gate latch designed specifically for swimming pool safety gates. Built from high-strength, UV-stabilized polymer with stainless steel internal components, this latch offers unmatched durability, reliability, and compliance with South African National Building Regulations (SANS 10400) and international pool safety standards.

📽️ See DEMO Video

With its triple-security magnetic mechanism and tamper-resistant design, the Tri-Mag 5.0 ensures pool gates remain self-latching, lockable, and child-resistant, providing homeowners, estate managers, and developers with complete peace of mind.

⚙️ Key Features & Benefits

  • 🔒 Triple Magnetic Safety - Advanced three-magnet alignment ensures secure, automatic latching every time.
  • 🧒 Child-Resistant Design - The Press & Lift release button at the top prevents children under 5 from accessing pool areas.
  • 🌧️ All-Weather Durability - UV-resistant, rust-proof materials engineered for harsh South African climates.
  • 🔑 Lockable Security - Integrated key-lock system provides additional safety when pools are unattended.
  • 🛠️ Easy Installation - Compatible with PVC, timber, and steel gates. Designed to pair seamlessly with Value Fencing's Stainless-Steel Self-Closing Hinges for full compliance.

📏 Local By-Laws & Regulations - Compliance Information

South African municipalities and SANS 10400-B & SANS 1390 pool safety regulations require that:

  1. Pool Safety Gates Must Be:
    • Self-closing from any open position.
    • Self-latching without manual intervention.
    • Lockable with a key mechanism.
  2. Gate Direction (New Regulation 2024):
    • All pool gates must open outwards, away from the pool. This prevents children from pushing the gate inward to gain access.
  3. Latch Position Requirements:
    • Latch release mechanisms must be installed at least 1.5m above ground level.
    • The latch must be child-resistant and operable only with a two-step action (Press & Lift).

✔️ Tri-Mag 5.0 + Stainless-Steel Hinges = Full Compliance

When installed together with Value Fencing's Stainless-Steel Self-Closing Pool Gate Hinges, the Tri-Mag 5.0 ensures:

  • Automatic gate closure from any open angle.
  • Secure, magnetic self-latching every time.
  • Correct outward gate swing in line with new municipal by-laws.
  • Complete conformity with South African pool safety legislation and international best practices (including Australian AS1926.1 standards).
  • 🛠 See Installation Instruction Video

This makes the Tri-Mag 5.0 the only latch you need for guaranteed compliance and maximum child safety around your pool.

📦 What's in the Box?

  • 1 × Tri-Mag 5.0 Magnetic Pool Safety Latch
  • Stainless steel fasteners & installation guide
  • Optional: Locking key set

🌍 Why Choose Value DIY PVC?

As a division of Value Fencing PVC Franchise Group®, South Africa's original & best PVC fencing supplier since 2009, we guarantee:

  • 20+ years expertise in pool safety solutions.
  • SANS-compliant products trusted by homeowners, estates, and developers.
  • Nationwide support & installation through our professional franchise network.

📣 Ensure your pool area is 100% child-safe and compliant with South African by-laws.

Order the Tri-Mag 5.0 Magnetic Pool Safety Latch today and combine it with self-closing stainless steel hinges for a complete, legally compliant pool safety solution.

⚡ Tri-Mag 5.0 - Safer. Stronger. Smarter. Fully Compliant.

Specifications

Price Inc. Vat
R 1,899.99
